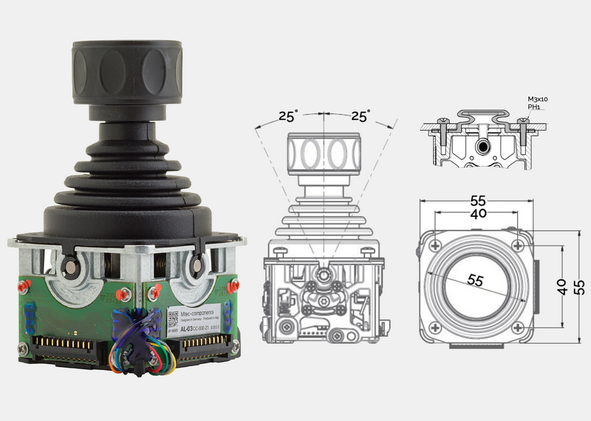

This new joystick is a robust, customizable, high-precision 3-axis joystick suited for industrial and professional harsh environment applications. Its combination of detent tactile feedback, optional position-hold, and three-axis control makes it ideal for complex, nuanced system operations. With compliance to RoHS and IEC standards, and options for environmental sealing, it’s a reliable choice for technology integrators seeking premium manual control solutions.
Key features:
Three-axis control:
X and Y via dual yokes.
Z-axis enabled by built-in twist function (up to 30°)
Mechanical performance:
Up to 36° travel on X/Y axes and 30° on Z-axis
Fine linear-force deflection for precision.
Improved “Notching System”:
Offers up to 5 position detents for tactile feedback.
Custom detent angles: commonly ±7.2°, ±14.4°, ±21.6°
Customization Options
Friction (position‑hold) on one or both axes — adds damping and increases weight.
Color-coded knobs or panels for easy visual identification.
Coulisse-type guides for restricted movement or safer operation.
Switch or third-axis variants to add functionality per control station.
