8” HIGH RESOLUTION DISPLAY
Sunlight-Readable LTPS TFT-LCD for Rugged Handheld Controllers

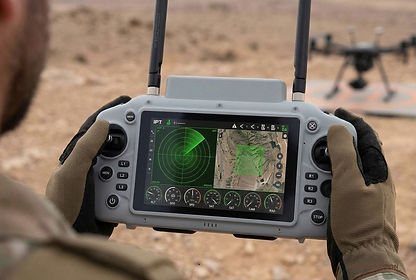

Outdoor handheld devices such as UAV ground control units, rugged tablets, and field instruments need a display that stays clear under harsh light and survives tough conditions. This 8.0" WXGA module is designed for exactly that.
Clear and Bright
With a typical brightness of 1200 cd/m² and a 1400:1 contrast ratio, on-screen content such as maps, radar overlays, and telemetry gauges remains easy to read in direct sunlight. The 1280 × 768 resolution in a 16:9 format provides enough detail for multi-window layouts, and 16.7M colors keep imagery accurate and natural.
Wide Viewing Angle
The super wide viewing design delivers a typical 85° angle in every direction. The image stays consistent when the operator tilts the device or a teammate views the screen from the side.
Built for Harsh Environments
The module operates from -40 °C to 85 °C and is tested against:
• Thermal cycling and thermal shock
• High temperature and humidity
• Vibration (5 G) and mechanical shock (80 G)
• ESD protection of ±12 kV (air) and ±15 kV (contact)
This makes it a dependable choice for devices used outdoors, in vehicles or in military applications . the display is MIL-STD-810H compliant.
Easy Integration
A standard LVDS interface with a 20-pin connector keeps hardware design simple. The module runs from a 3.3 V logic supply and a 12 V backlight supply, with PWM brightness control for flexible dimming and power management. A scan-direction option also supports flipped or non-standard mounting.
Compact and Long-Lasting
At 189.5 × 119.4 × 11.6 mm and around 254 g, the module fits slim, lightweight handheld designs. The LED backlight is rated for up to 70,000 hours, supporting long service life with minimal maintenance.
Summary
Bright, wide-angle, and ruggedized, this 8" high resolution display helps engineers build reliable outdoor handheld products with less integration effort. Contact us for full specifications and evaluation samples.
SPECIFICATIONS:
Display Technology | LTPS TFT |
Module Dimensions | 189.5 (W) mm × 119.4 (H) mm × 11.6 (D) mm (Typ.) |
LCD Active Area | 173.952 (W) mm × 104.3712 (H) mm |
Pixel Pitch | 0.1359 (W) mm × 0.1359 (H) mm |
Resolution | 1280 × 3 (RGB) (W) × 768 (H) dots |
Color Pixel Arrangement | RGB Vertical Stripe |
LCD Type | Transmissive Type, Normally Black |
Display Type | Active Matrix |
Number of Colors | 16.7M Colors (8-bit RGB) |
Backlight | Light Emitting Diode (LED) |
Weight | 254 g (typ) |
Interface | LVDS; 20 pins |
Power Supply Voltage | 3.3V for LCD; 12V for Backlight |
Viewing Direction | Super Wide Version |
