ADR offers a 1/9” CMOS camera module, sized 3.60mm diameter, assembled to a USB interface. The module is based on OV9734 sensor, made by Omnivision. The sensor has a maximum resolution (1280*720) of up to 30 frames. This unit can be used at high resolution and high frame rate. It can also improve the image quality in low-light scenes.

ADR supply SWIR technologies (wavelengths range from 1,050-2,500 nm), gradually mature, and prices begin to reach feasible levels. A new applications, based on PPG technology adopt it. With improving algorithm, wearable devices are increasingly likely to feature PPG-based bio-sensing functions, which can measure not only heart rate and blood oxygen levels, but also other variables including body hydration as well as blood glucose, blood lipid, and blood alcohol levels in the

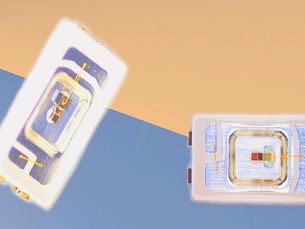

ADR supply IR SMD LED’s for laser applications. The main advantages of those LED’s are: High power . Open package. High wavelength stability at different temperatures. Example of parameters: Threshold Current Ith up to 65mA (under 5mW) .

ADR supply UVC LED’s (200-280nm). This range of super short wavelength is very effective for fields as: Counterfeit Detector Phototherapy Disinfection & Sterilization Air purification and more.

IR LED’s Improve Health and Environment Detection for Wearable devices. Via photoplethysmography (PPG), red light and infrared LED’s can receive date from the environment and measure biometric data including heart rate, blood oxygen, blood pressure and blood sugar level. Adopting the sensing components to wearable devices enables a wider range of applications.

The endoscope modules, provided by ADR, offer 3.5 & 3.9mm cameras, based on Omnivision or Sony image sensors, with or without lighting. The dynamic Range can reach 73db. A very fine coaxial cables, awg36-awg46 are used, connected and welded specially for medical purpose. The camera itself is water protected to IP-67 level.

ADR introduce a broad line of USB camera modules, with Omnivision and Sony CMOS sensors. All modules are using an Immersion Gold process PCB. The resolution range is between 0.3 to 13MP.

ADR offers a broad line of mini camera modules with a customized FPC. The internal image sensor is made by a well known brands like Omnivision, Panasonic, Himax and others.

ADR offers Infrared Thermopile Sensors. The main features of the sensors are: * Fast response * High sensitivity * NTC thermistor compensation * TO-46 package * 5μm Long-wave pass filter

Ambient light sensor can detect only visible light, so since the output changes according to brightness of ambient light, this is often used for IoT home automation systems. Tow types are offered: SMT version. It is a digital output ambient light with I2C interface. It has a flexible and wide operating range for the ambient light sensor with a maximum resolution of 0.0033Lux/count and a maximum detectable illumination of 83000Lux.

The IR distance sensors can literally detect distance between an object and the sensor, by triangulation method. This line of sensors, have less influence by reflectance and color of an object. So, if you would like to detect different color or objects, this type of sensors is one of the best option— Better than the TOF sensor. ADR range of distance sensors covers the distance between 15mm (Min) to 1500mm (Max).

This New IR temperature sensors can detect temperature of stationary object - A non-contact thermopile sensing. There are several types - single pixel type, single pixel module type and array module type. ( 8X8 & 32X32). They are proposed also according to client’s requirements. The sensor includes a built-in function to perform temperature correction. The single unit type module, detects temperature, mainly based on body temperature. Outputs is an ON/OF signal.

This SMT PIR sensor have 3 versions—3, 4 & 6 terminals. All the signal processing is made digitally. The voltage levels in the input, converted to a digital values ( 7 bit ). The PIR signal is converted to 15 bits digital values on the chip. There is a light indication when PIR signal is above the threshold.

New PIR digital sensor with delay time adjustments and an expanded range from 2 seconds to 70 minutes. The unit includes an integral light sensor with adjustable sensitivity. It is suitable both for outdoor and indoor mounting.

This new PIR sensor integrates digital control circuit and body sensitive element in one electromagnetic shielding. All signals are processed digitally. The signal inputs from a sensitive element to digital circuit via a high impedance differential. The digital circuit converts the input signal to a 15 bit ADC digital value.

Rear mount indicator is a perfect solution for panel's mass production. Either with pcb terminals, solder-lug or flying leads, the wiring is done before the panel assembly. ADR offers this solution both in plastic and metal housing. All versions are sealed to IP67 level. Special version offer it with NVG led's. Products are mounted to 8mm hole.

Indicators for panel, have to be well designed, in order to be effective under relevant conditions & to increase panel's look. ADR have a wide range, includes 5.00 to 30.00 mm diameter indicators. Options includes: Head styles - flat, prominent & other. Depth - short & long Sealing - external & internal. Materials - metal or plastic.

Key switch is commonly used as a safety product. you can find it in systems like Medical, Military, Machinery and others, electrical function options are wide - similar to rotary switch. ADR offers 2 unique features: 1. Short body length behind panel, down to 19 mm only (standard is around 40mm).

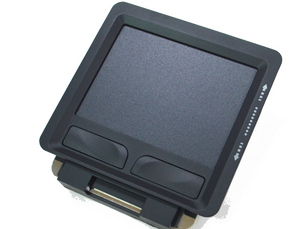

Touch-pad can directly installed into your panel/pcb without any housing or additional functions. Alternatively, it can comes as a module, includes buttons, keypad or frame. ADR offers both options. Module can be made of either metal or plastic materials.

Industrial mouse is combined of 1 Hula Point button & 2 keys. There are 2 versions: Desk-top with a metal housing. Integrated that is fully covered with elastic rubber. ADR offers both.
